Environmental Protection 0.3um Reverse Pulse Dust Collector

Name: Environmental Protection 03um Reverse Pulse Dust Collector
Brand: Sooannas
Price: 190 USD

China Environmental Protection 0.3um Reverse Pulse Dust Collector wholesale

Brand Name : Sooannas

Model Number : SAFD-01

Certification : ISO9001

Place of Origin : China

MOQ : 1 Set

Price : CN¥190,918.00-CN¥340,925.00

Payment Terms : L/C, T/T, Western Union, MoneyGram

Delivery Time : 3 months after deposit

Packaging Details : Standard containers loading, nude packing for filter body, thin film packing for main parts, carton packing for filter bags, accessories etc.

Supply Ability : 280 Set/Sets per Year

Dust out : <10 mg/Nm3

Minimum Particle : 0.3um

Voltage : According to client's country voltage

Cleaning method : Pulse air

Dust collector type : Baghouse dust collector

Core Components : PLC, Motor, Solenoid vavle

After-sales Service : Field installation, commissioning and training

Cleaning type : Clean-In-Place (CIP)

Contact Now

Product Description

Bag Filter Dust Collector has higher collection ability to dust with larger specific gravity and thicker particles. According to the concentration of dust, the thickness of dust particles can be used as primary dust removal or single-stage dust removal respectively, for corrosive dust-containing gas and high-temperature dust-containing gas, it can also be collected and recycled.
dust separator equipment cyclone dust extractor is widely used in metallurgy, casting, building materials, chemical industry, grain, cement, petroleum, light industry and other industries. It can be used as recycled material equipment to supplement dry non-fibrous particle dust and dust removal.

Main Features for Dust Collector

1) The dust removing efficiency is over 99.9% and emission concentration is less than 30mg/Nm3.

2) High density dust air below 1000mg/Nm3 is available.

3) It has stable and reliable performance, high degree of automation and low investment.

4) Wear resistance and Corrosion resistance

5) High temperature resistance and Long operating life

6) Safe and reliable operating performance stable and Small footprint and low cost

7) Simple operation and Easy administrate and without operation cost

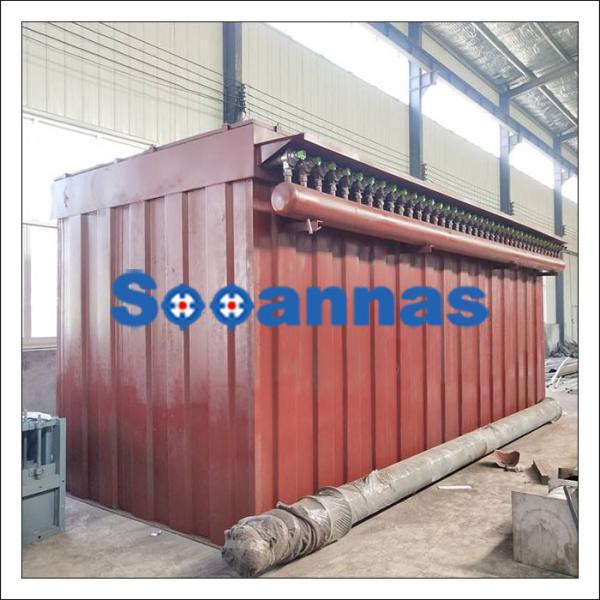

Environmental Protection 0.3um Reverse Pulse Dust Collector

Product Details

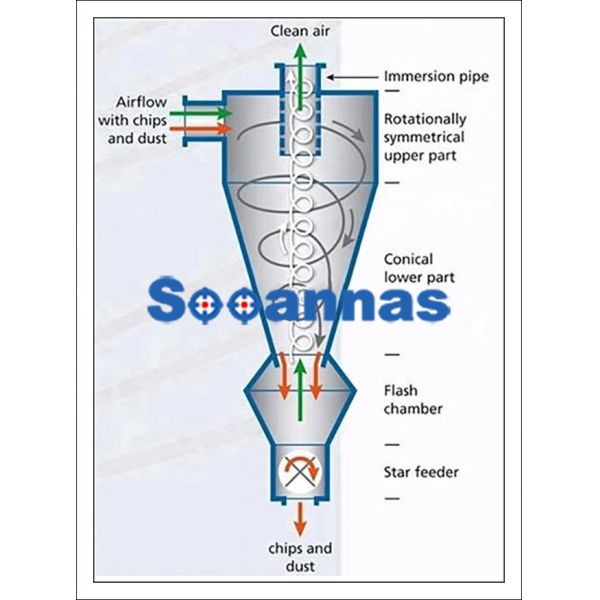

Baghouse Structure

Environmental Protection 0.3um Reverse Pulse Dust Collector

Technical Parameters for Dust Collector

Model		JBQM	JBQM	JBQM	JBQM	JBQM	JBQM	JBQM	JBQM	JBQM
		32-3	32-4	32-5	32-6	64-4	64-5	64-6	64-7	64-8
Technical parameter
Air volume(m³/h)		6690	8930	11160	13390	17800	22300	26700	31200	35700
Total filter area(m²)		93	124	155	186	248	310	372	434	496
Chamber(pcs)		3	4	5	6	4	5	6	7	8
Quantity of filter bag(pcs)		32				64
Total quantity filter bag(pcs)		96	128	160	192	256	320	384	448	512
Pulse Valve	Quantity(pcs)	3	4	5	6	4	5	6	7	8
Pulse Valve	Specitication(inch)	1/½″				2/½″
Specification of filter bag(D×Lmm)		∅130×2450
Filter material		Based on flue gas properties
Filtration speed(m/min)		0.8~2.0(Adjustable)
Negative pressure(pa)		≤6000
Resistance(pa)		1470~1770
Inlet dust concentration(g/Nm³)		<200				<1000
Blowing pressure(Mpa)		0.5~0.7
Compressed air consumption(Nm³/min)		0.27	0.37	0.46	0.55	1.2	1.5	1.8	2.1	2.4
Air locking unit		Adjustable
Screw converyor		NO				Adjustable
Area of heat preservation(m²)		26.5	34	41	48.5	70	94	118	142	176

Model		JBQM	JBQM	JBQM	JBQM	JBQM	JBQM	JBQM	JBQM	JBQM	JBQM	JBQM	JBQM
		96-4	96-5	96-6	96-7	96-8	96-9	96-10B	96-12B	96-14B	96-16B	96-18B	96-20B
Technical parameter
Air volume(m³/h)		26800	33400	40100	46800	53510	60100	66900	80400	93750	107150	120500	133900
Total filter area(m²)		372	465	557	650	744	836	930	1023	1209	1395	1581	1767
Chamber(pcs)		4	5	6	7	8	9	10	12	14	16	18	20
Quantity of filter bag(pcs)		96
Total quantity filter bag(pcs)		384	480	576	672	768	864	960	1152	1344	1536	1728	1920
Pulse Valve	Quantity(pcs)	4	5	6	7	8	9	10	12	14	16	18	20
Pulse Valve	Specitication(inch)	2/½″
Specification of filter bag(D×Lmm)		∅130×2450
Filter material		Based on flue gas properties
Filtration speed(m/min)		0.8~2.0(Adjustable)
Negative pressure(pa)		≤6000
Resistance(pa)		1470~1770
Inlet dust concentration(g/Nm³)		<1300
Blowing pressure(Mpa)		0.5~0.7
Compressed air consumption(Nm³/min)		1.2	1.5	1.8	2.1	2.4	2.7	3	3.4	4.2	4.8	5.4	6
Air locking unit		Adjustable
Screw converyor		Adjustable
Area of heat preservation(m²)		110	120	130	140	150	160	175	210	215	280	315	350

Case Presentation

Order Steps

Our Services

Product Tags:

a. Professional engineer design layout drawing for you

b. Recommend most suitable equipment according to your factory situation.

2) During-sale services:

a. Pre-check and accept products before delivery

b. Send technicians to the jobsite for guiding the installation and adjustment

c. Training operators and finishing the check to satisfy factory situation.

3) After-sale services:

a.Common problem can be solved through web in 24 hours,complex problem can be reacted

immediately in 24 hours and solved as soon as possible
